Series 2020

• 5 to 9 CNC Axes
• Up to 30 HP Spindle Drive
To view a reprint article from Modern Application News about this series machine, click here.

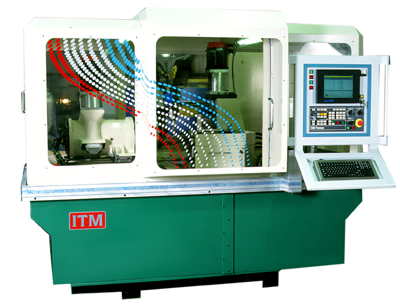

Machine dimensions madeusa.gif (4937 bytes)
• Height: 2020 mm , 79.5"
• Width: 2850 mm, 112"
• Depth: 1920 mm, 75.6"
• Weight: 4,990 kg, 11,015 lbs

APPLICATIONS / GRINDING OPERATIONS
• End Mills: All Operations in one clamping including Ballnose, Taper-Ballnose, and all other standard configurations
• Stepdrills: Flutes, Steps with Axial and Radial Relief, Point and Web-Thinning
• Counterbores: Flutes, Face and O.D. Diameters
• Countersinks: Flutes, Cone-relief and O.D. Diameters
• Reamers: Flute, Clearance and Chamfer
• Taps: Flute, Thread and Chamfer, Straight Flutes, Straight Flute and Spiral Point, Spiral Flutes - R. & L. Hand, Spiral Flute and Chamfer
• Drills: Flute, Clearance and Point Grinding with simultaneous or separate operations
• Specialty Tools and Parts: Semi or Fully Automatic Grinding with the most intricate requirements, Gear and Worm, Injection Plungers, Medical Parts such as: Reamers, Hip-Broaches, Bone Screws and Knee Joints, Thread Rolls with up to 400 starts and multiple operations in one clamping, Hole Cutters, Internal Grinding, etc.

For maximum flexibility and versatility up to 3 Vertical spindles with up to 3 wheels per spindle can be mounted in the machine base to guarantee that the appropriate wheel is used for each grinding operation.

Built-in PC control with modem for electronic data transfer.
• PC-based "Open System" CNC control software.
• Open programming structure allows users to write additional programs if desired.
• Software available for generation of NC programs with on-screen graphics for visual verification of grinding results prior to machine operation.

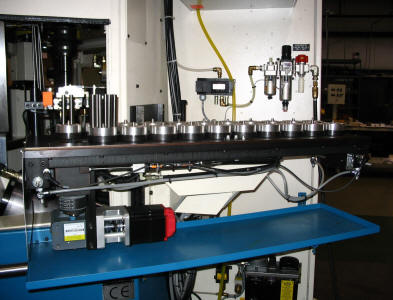

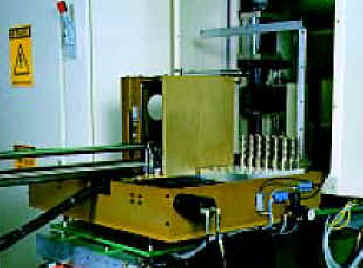

Automatic Cassette
Loading System
for fully automatic operation
• Up to 300 parts
• Minimum Diameter 3mm, ¹/₈"
• Maximum Diameter 25mm, 1" (32mm, 1¹/₄")
(Hopper loader systems or customer
determined loader systems available)

Read Modern Application News (MAN)
article about the 2020-UGG

WORKPIECE DATA
• Max. Dia. 100mm, 4"
• Min. Dia. 3 mm, ¹/₈"
• Max. Length 500mm, 20"
• Larger grinding ranges possible with the use of special tooling

TECHNICAL DATA
• Inch/Metric switchable
• Workhead Swing ±95°
• Standard rotary
diamond roll dresser
• Optional CNC dressers available for dressing of all wheel types (including diamond wheels) in the machine.
• Up to 3 Vertical
fixed grinding spindles

GRINDING WHEELS
• Max. Dia. 300mm, 12"
• Min. Dia. 150mm, 6"
• Up to 100 m/s
wheel speeds
• Diamond, CBN or
conventional wheels
