The Complete Solution for Resharpening Applications
up to 4" in Diameter!

• 5  CNC Axis
• Up to 30 HP Spindle Drive


Machine dimensions madeusa.gif (4937 bytes)
• Height: 2020 mm , 79.5"
• Width: 2850 mm, 112"
• Depth: 1920 mm, 75.6"
• Weight: 4,990 kg, 11,015 lbs

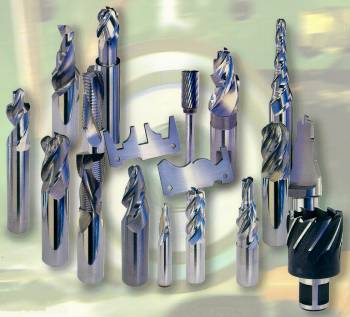

Workpieces

• Cylindrical or tapered Mills

• Square End, Chamfer, Corner Radius or Ballnose Endmills

• Subland Step Drills and other Parts

Machine Specifications

• User-friendly Programming and easy Set-up

• On Screen Simulation

• Cost efficient thru the use of standardized wheels



Options

• Automatic probing of tool dimensions

• Integrated Dressing of wheels

• Fully automatic Loading  & Clamping

• Additional Software Packages

• End Support with retractable Tailstock

Up to three grinding spindles

Illustrated: Grinding Simulation of a tapered Cutter


ITM has been serving the Cutting Tool Industry for over 18 years as a Manufacturer of High Production & High Precision CNC Grinding Machines, which are characterized by their rigid & durable designs.

  In our newest machine, the ITM 2020-URG, we combine the rigid design with the latest Software Solution available for Tool Grinding, NUMROTOplus®.  This combination leads to an immense advantage for today’s Resharpening Industry.  For more info please contact us directly!



ITM Machines are Designed for 24 Hour Production...7 Days a Week
