Universal Flute Grinder
Universal Flute Grinder
FLUTE SERIES
ITM holds over 30 patented machine designs

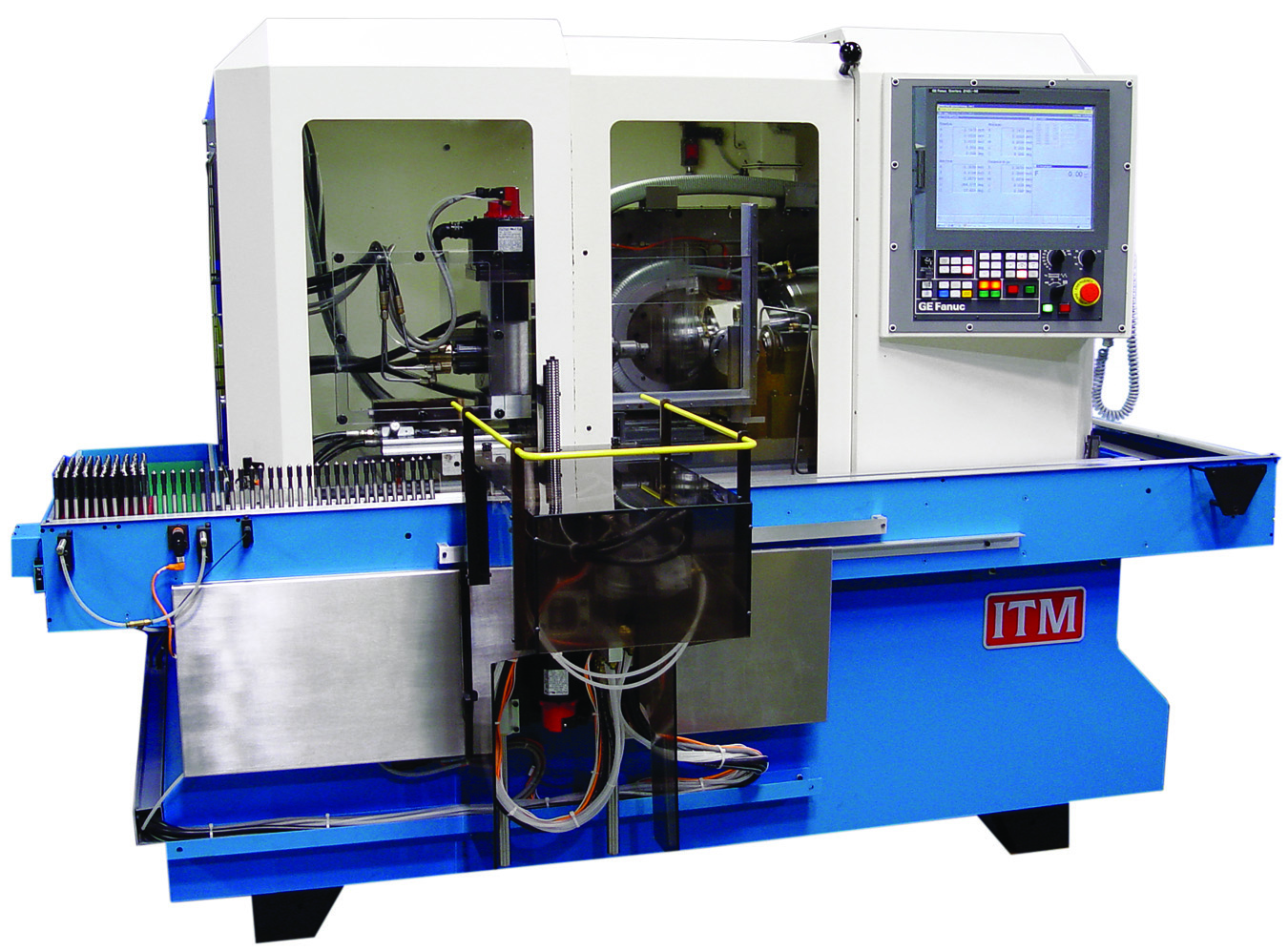

>> Universal Flute Grinder (models: UFG-12, UFG-25, UFG-50)
Flute grinding is the most time consuming and thus most cost intensive manufacturing step during drill and end mill production. In recent years, grinding machines have become more compact, axis path lengths have reduced, and machine controls have become more efficient.
Simultaneously ITM has developed flute grinder that produces higher and more economic output.
For further information regarding ITM’s Flute Grinders, please contact us at 386-446-0500.
>> SAMPLE APPLICATIONS / GRINDING OPERATIONS
UFG Inside
- Taps: Straight Flutes, right & left hand Flutes, Spiral Point*
- Endmills – Carbide & HSS: Flutes, OD Relief*
- Twistdrills (Industrial/ Aircraft/ S+D/ DIY/ Medical/ PCB) – Carbide, HSS & Stainless: Flutes, OD Relief*
- Medical Tools – Stainless & Titanium: Fluting Drills, Reamers, Burs
- Reamers – Carbide & HSS: Flutes, OD Relief*
- Countersinks – Carbide & HSS: Flutes, Cone Relief, OD*
- Counterbores: Flutes, OD Relief, Pilot OD*
- Annular Hole Cutters: Flutes
- Cylindrical Burs – Carbide & HSS: Flutes, Chipbreakers*
- Cylindrical Routers – Carbide & HSS: Right & left hand Flutes*
- Form Relieved Cutters – Flutes, Relief*
* 2nd and 3rd Operation may have to be performed in separate set-ups.
