OVERVIEW: AUTOMATIC LOADING SYSTEMS

ITM AUTO CONVEYOR LOADERS AND ROBOT LOADERS

International Tool Machines are designed for 24 hour production, 7 days a week. For this reason, ITM offers an array of automatic loaders for your manufacturing needs. Depending on your grinding application of your tool or part we have the loading system that can load and unload your part with the shortest cycle time. ITM’s loaders has been used in hundreds of ITM customer machines: in the tool industry, automotive and medical fields.  Our automatic loaders are easy to maintain and utilize cassettes easily accessible through 3rd party vendor(s). It has sensors to detect the part and safety measures to help prevent loading issues.

For more information on ITM’s Automatic Loading Systems, contact us at 386-446-0500.


Robot Loader



Conveyor Type Cassette Loader for PPG & UFG Machines (PEELSERIES & FLUTESERIES)

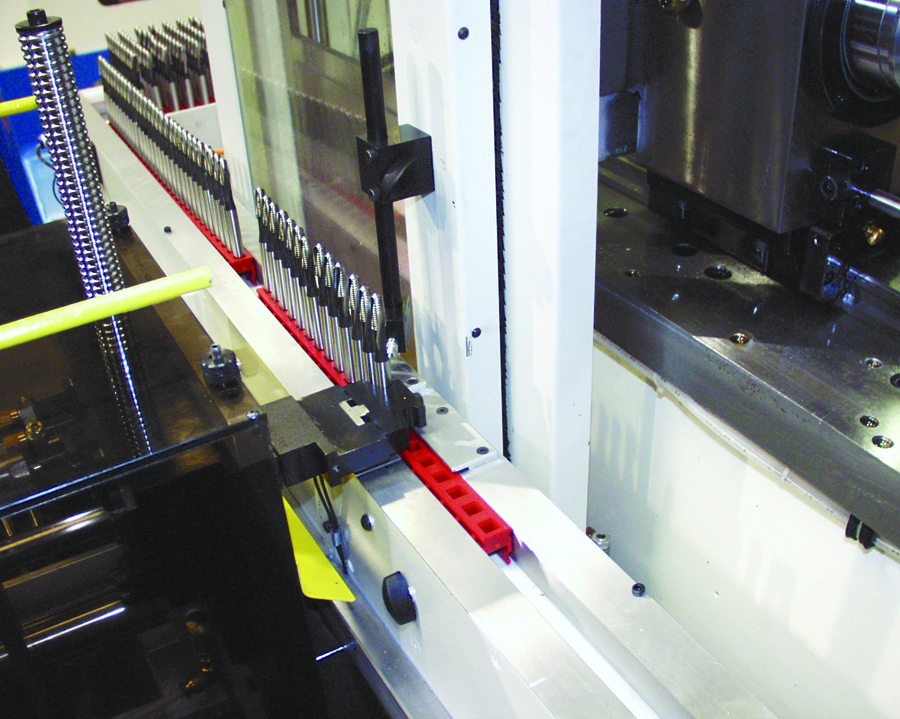

Conveyor Type Cassette Loader

• Max. OAL 260mm (10 1/4”) • Min. Diameter 1.5mm (1/16”) • Max. Shank Diameter 25mm (1”) • Max. Cutting Diameter 32mm (1 1/4”) • Capacity Round shank: up to 16mm (5/8”) – 492 pieces 16 to 25mm (1”) – 150 pieces Square Shank: up to 10mm (3/8”) – 410 pieces 10 to 16mm (5/8”) – 150 pieces • Optional Capacities available!

Conveyor Type Cassette Loader for UFGG Machines (Flute & Gunnose Grinders)

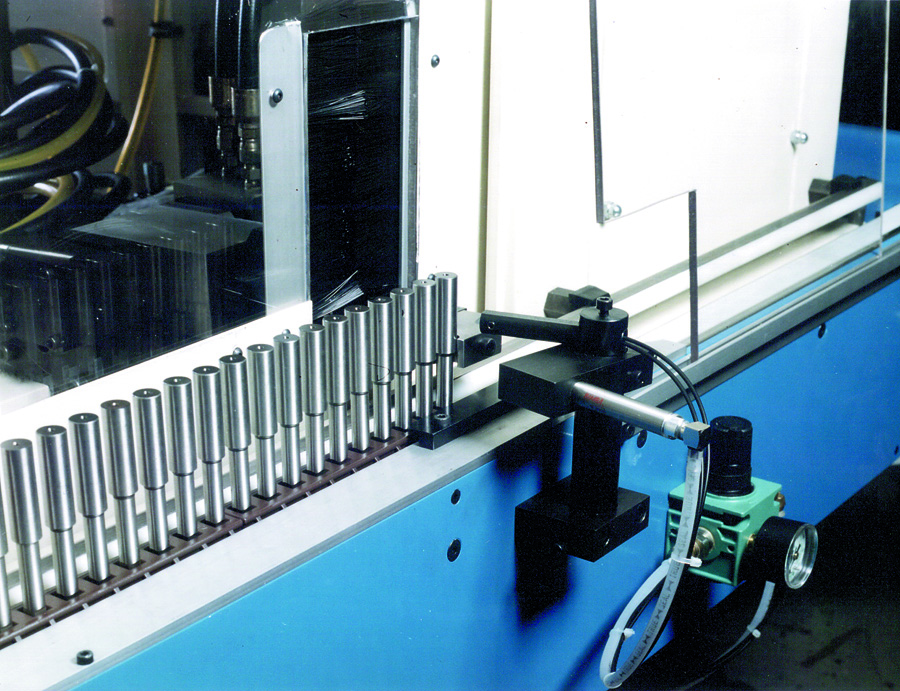

UFGG Autoloader

• Max. OAL 160mm (6 1/4”) • Min. Diameter 1.5mm (1/16”) • Max. Shank Diameter 25mm (1”) • Max. Cutting Diameter 32mm (1 1/4”) • Capacity Square Shank: up to 10mm (3/8”) – 430 pieces 10 to 16mm (5/8”) – 160 pieces

Cassette Loader for RTG (Multiple Station Grinders)

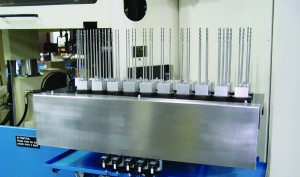

RTG Cassette Loader

• Max. OAL 300mm (12”) • Min. Diameter 1.5mm (1/16”) • Max. Shank Diameter 25mm (1”) • Max. Cutting Diameter 42mm (1 5/8”) • Capacity up to 168 pieces depending upon diameter • Optional Capacities available!

Hopper Loader for RTG (Multiple Station Grinders)

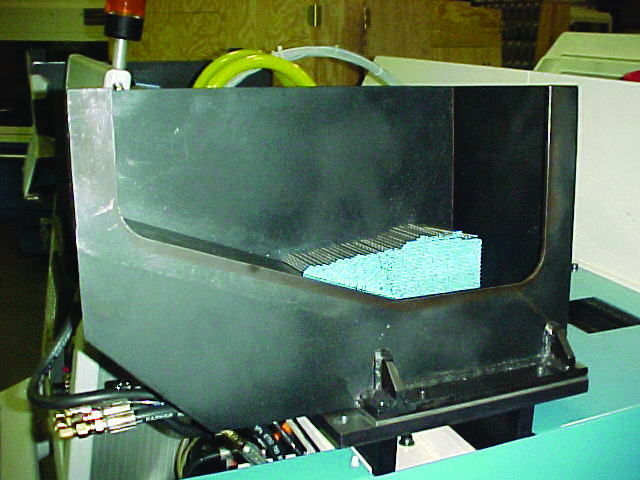

Roto Hopper Loader

• Min. Diameter 1.5mm (1/16”) • Max. Diameter 25mm (1”) • Capacity: 3mm (1/8”) – 12,595 pieces 6mm (1/4”) – 3,267 pieces 12mm (1/2”) – 706 pieces • Optional Capacities available!

Unloader for Hopper – RTG (Multiple Station Grinders)

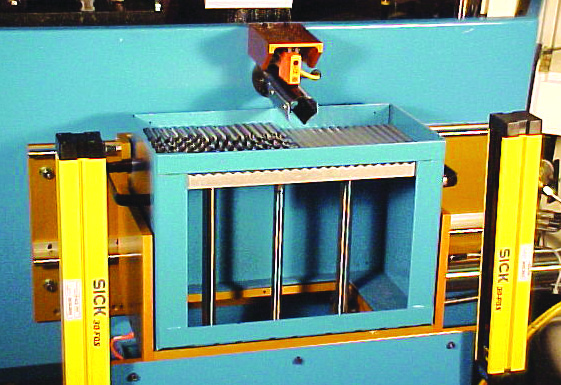

Unloader for Hopper


Hand Load Support for Heavy Parts
Loading of M156 Tap (6″) 9kg (20 lbs) on the UFG

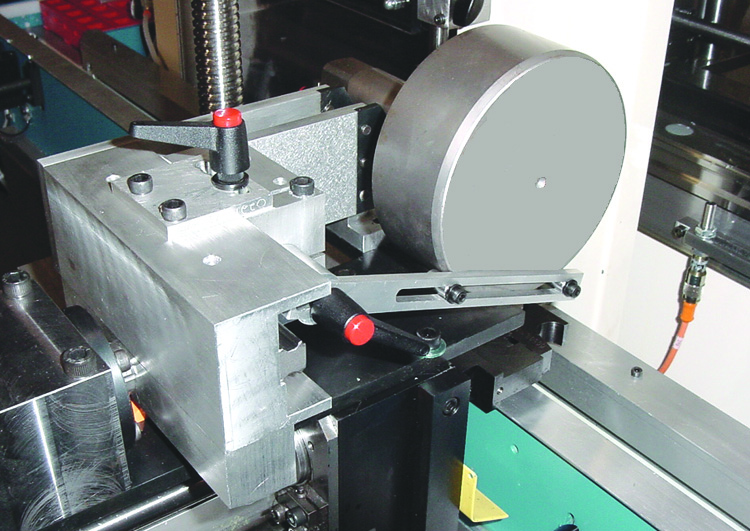

Hand load support
